Adopting with Edge class optics and high-resolution sensor, the 5MP Dino-Eye Edge series AM7025X eyepiece offers remarkable image performance yet provides relatively large field of view than its predecessors. With fine color reproducibility, the AM7025X is capable of capturing finest detail of microscope’s image for professional applications

High optical performance

With the state-of-the-art lens design, the AM7025X is capable of reproducing possible details imaged from the microscope

5.0 Megapixels

The advanced CMOS image sensor allows to transmit crisp images with resolution up to 2592x1944.

Adaptable design

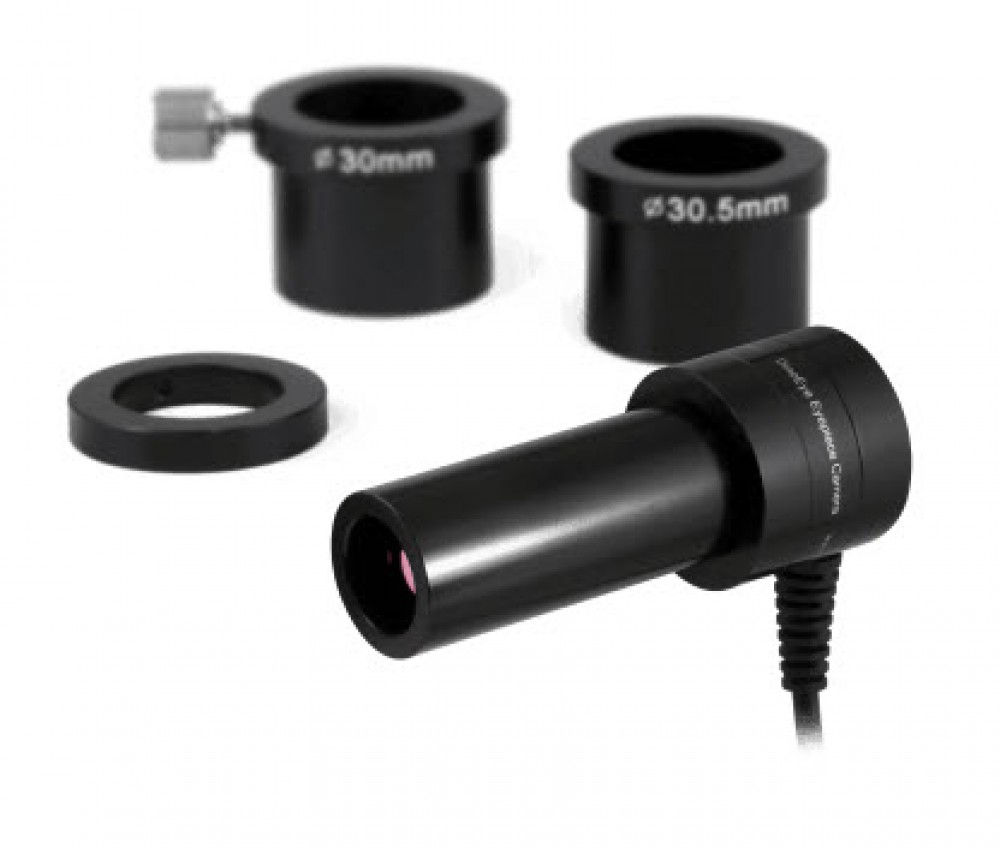

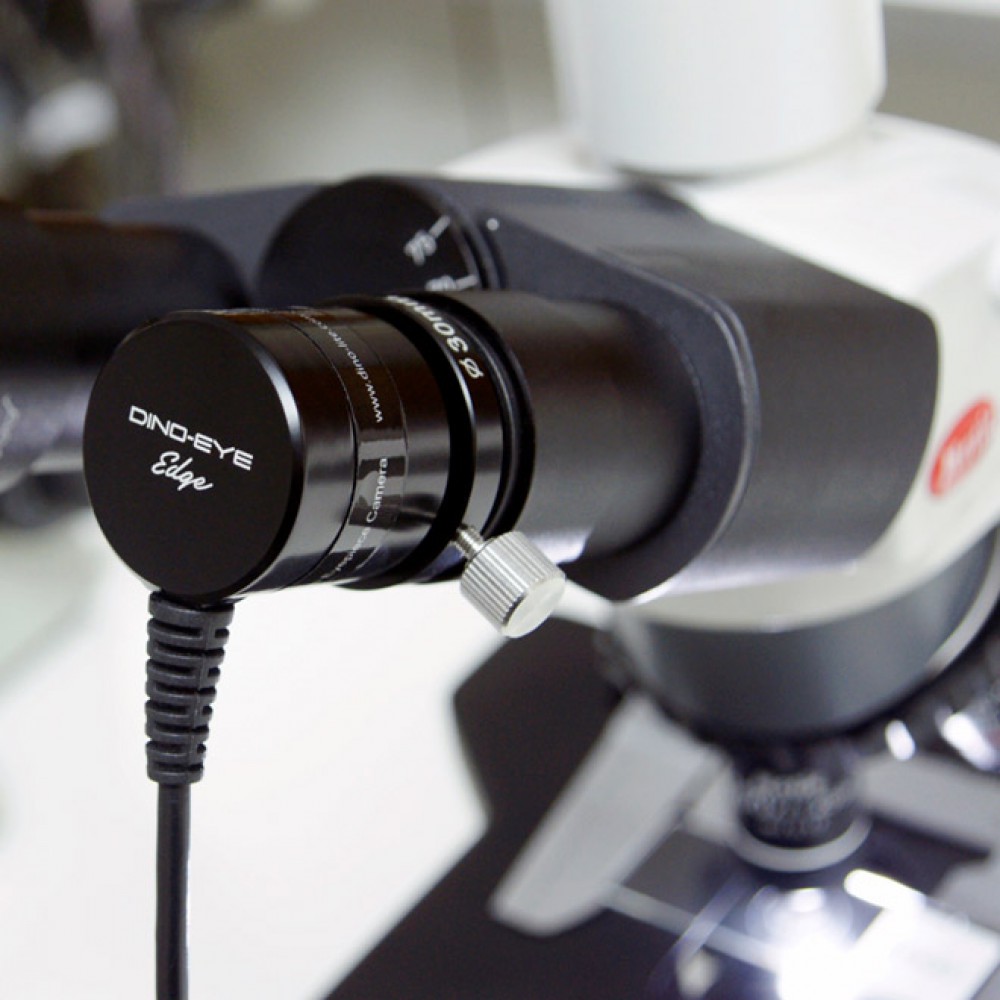

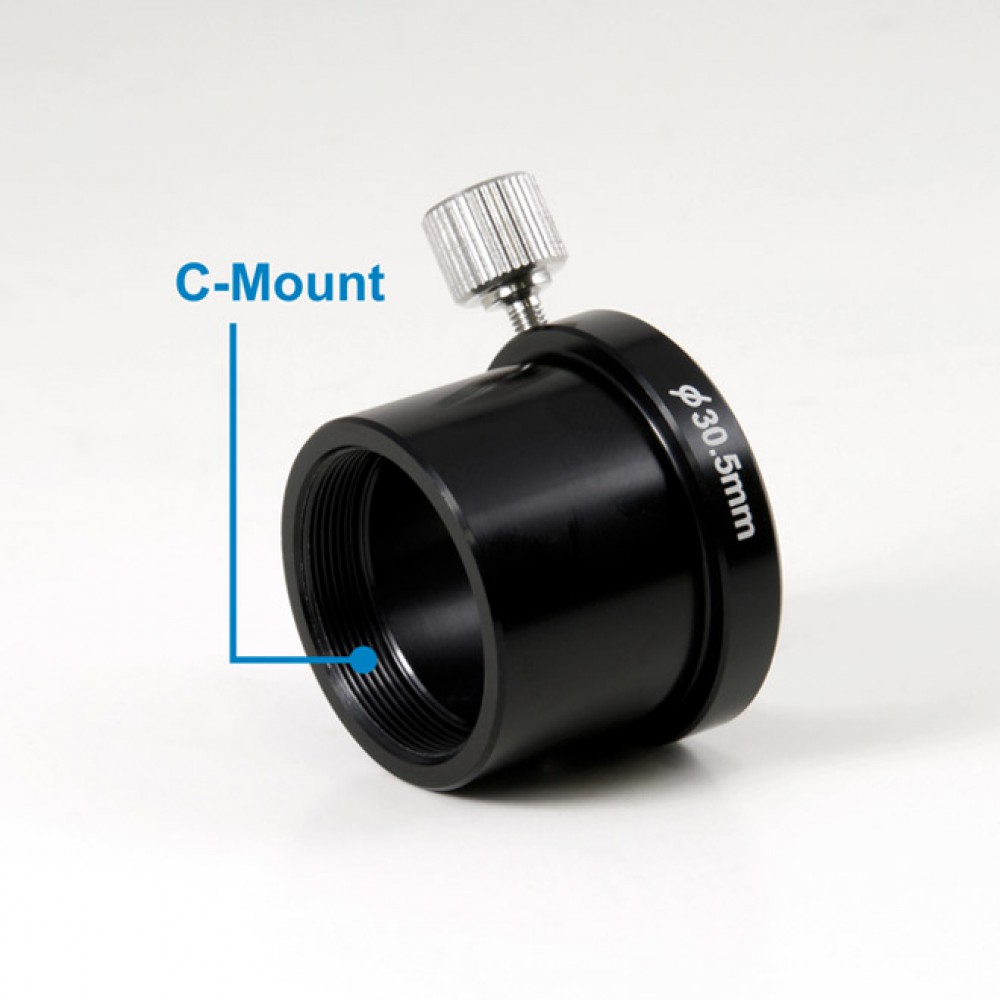

The AM7025X can fit in with 23mm / 30mm / 30.5mm eyepiece port or C-mount port for adapting most microscopes usage.

Model                                   AM7025X Dino-Eye Edge

Interface                              USB 2.0

Product Resolution              5M pixels (2592x1944)

Frame Rate                         10fps in 5MP/3MP/2MP, MJPEG

                  25fps in 1.3MP, MJPEG

                   30fps in VGA, MJPEG

operating System Supported        Windows 10, 8, 7, Vista, XP,         Mac OS 10.12 ~ 10.14

Calibration Function               Yes

Measurement Function          Yes

Unit Dimension                      8.0cm (H) x 3.2cm (D)

Unit Weight                            117g
